Lingobit Multilingual Library
Download binary sample - 102 Kb
Download source - 48 Kb
Multilingual Library adds multiple UI languages support to your MFC application. Multilingual library uses resource-only DLLs (sometimes called satellite DLLs) to keep translated resources, automatically selects appropriate language according to Microsoft Windows settings, and automatically generates a menu for inclusion in your application with a list of available languages to allow a user to change the language. The library is quite easy to use as only minimal changes to the source code are required and it works with both exe and DLL files.

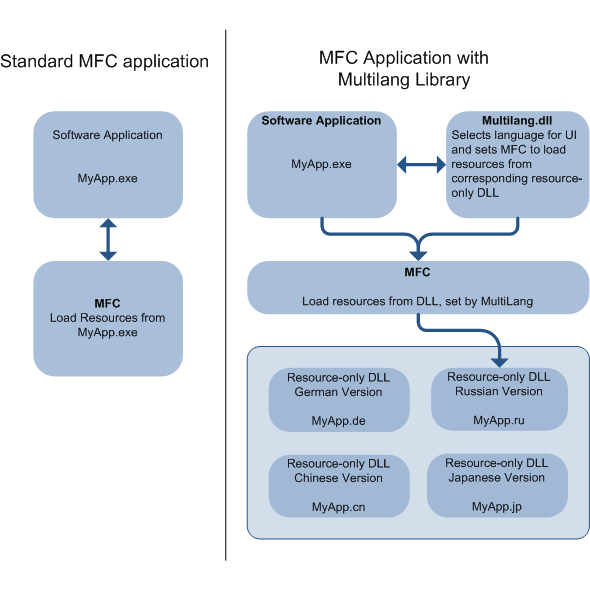

How it works
On the first run, Library finds available resource-only DLLs in the application directory, makes a list of available languages and then selects the most suitable language according to Microsoft Windows language settings. It loads selected language UI resources from corresponding resource-only DLL and then substitute them for resources in the main exe/dll file. Library saves UI language setting in registry and user can select other languages using menu from your application at any time.
Using the code
To use Multilingual Library you have to name satellite DLLs as Filename.LNG, where LNG is a two or three character code that identifies language (For example, English is EN, English-United States is ENU, Russian RU, German – DE). You can find full list at http://msdn.microsoft.com/library/default.asp?url=/library/en-us/intl/nls_9l2r.asp.
You want to translate application files below,
You have to name Resource-only DLLs in German as
In French it would be
To be found by library, resource-only DLLs should be placed in the same directory as executable files.
Using the code
- Link to multilang.lib
- Initialize Multilingual Library
- Add language selection menu to your application.
- Add Multilingual Library to your application's DLL with resources
- Create and translate resource-only DLLs
Add Multilingual Library for Resource-Only DLLs to EXE MFC Application:
Link MFC application to Lingobit Multilingual Library
- On the Project menu, click YourProjectName Properties.
- On the left pane, select Linker and then Input.
- On the right pane, select Additional Dependencies .
- Add path to multilang.lib to the Additional Dependencies
Changes to the source code of executable file (*.exe)
1. Add the following line to the beginning of MainFrm.cpp
2. Add the following code between
BEGIN_MESSAGE_MAP ( CMainFrame , CFrameWnd ) and
END_MESSAGE_MAP () in MainFrm .cpp
3. Add the following code to the MainFrm.cpp
void CMainFrame :: OnLanguageFirst ( UINT nID )
MultiLangOnClickMenu ( nID );
AfxMessageBox ( _T ("Please restart application for changes to take effect"));
void CMainFrame :: OnUpdateLanguageFirst ( CCmdUI * pCmdUI )
MultiLangUpdateMenu ( pCmdUI );
4. Add the following lines to the stdafx.h
#define ID_LANGUAGE_FIRST 32000
#define MAX_LANGUAGES 100
ID_LANGUAGE_FIRST+MAX_LANGUAGES will be used by Multilang Library and should not be used for other purposes in your application.
5. Add menu item with
ID_LANGUAGE_FIRST to the application menu
6. Add the following line to the beginning of YourApplicationName.cpp
7. Call Multilang Library initialization after
CWinApp::InitInstance() in the
InitInstance() function in YourApplicationName.cpp
MultiLangInitLocalization(ID_LANGUAGE_FIRST, MAX_LANGUAGES, HKEY_CURRENT_USER,
Add Multilingual Library for Resource-Only DLLs to MFC Extension DLL
Link MFC Extension DLL to Lingobit Multilingual Library
1. On the Project menu, click YourProjectName Properties.
2. On the left pane, select Linker and then Input.
3. On the right pane, select Additional Dependencies.
4. Add path to multilang.lib to the Additional Dependencies
Changes to the source code of MFC Extension DLLs files
1. Add the following line to the beginning of YourDLLName.cpp
2. Add the following line between
if (!AfxInitExtensionModule(YourDLLNameDLL, hInstance))
DllMain function in YourDllName.cpp
YourDLLNameDLL.hResource = MultiLangLoadLibrary(hInstance, HKEY_CURRENT_USER,
Create a resource only DLLs
There are several ways to create resource-only DLLs.
Manual creation of resource-only DLLs
To create a resource only DLL, follow these steps:
1. Create an empty DLL project.
o In Visual Studio 6, create a "Win32 Dynamic-Link Library" with "An empty DLL project" selected.
o In VS .NET or VS 2005, use "Win32 Project" in the "Visual C++ Projects" group, and select Application type "DLL" under "Application Settings".
2. Add the linker option /NOENTRY to the linker settings for each build.
o In VS 6, add "/NOENTRY" to the "Project Options" edit field in the Project Settings/Linker/Customize tab of the "Project Settings" dialog.
o In VS.NET or VS 2005, add "/NOENTRY" to the "Additional Options" edit field in the Configuration Properties/Linker/Command line tab of the project properties dialog.
3. Create a resource file.
o In VS 6, create a new "Resource Script" and enter a file name with the extension ".rc".
o In VS .NET or VS 2005, create a new "Resource File (.rc)" and enter a file name with the extension ".rc".
4. Copy all the native-language resources from your application to your new resource file.
5. Change the language of each resource to that of the resource-only DLL, and change the text, dialogs and bitmaps as required.
For more information, see the topics "resource-only DLLs" in MSDN help.
Automatic creation of resource-only DLLs
You can use Lingobit Localizer, innovative software localization tool, to simplify and speed-up creation of resource-only DLLs. Lingobit Localizer creates resource-only DLLs in three easy steps without any changes to the source code. Read resource-DLL tutorial for more information.
Lingobit Localizer not only helps with creation of resource-only DLLs, but also assists in localizability testing, translation, QA checks and collaboration with translators. Read more about Lingobit Localizer software localization features.
